Socomec ATyS p M: evolved power and genset management, 125 to 3200 A
ATyS p M is Socomec’s most fully-featured genset and power management transfer switch, sized across twelve standard steps from 125 A up to 3200 A. ATyS d p adds the same dual power supply concept for the control circuit found on the smaller ATyS d S.
Technical specification
| Model | Current | Poles | Voltage | Transfer time | Type | Mounting | Control / comms |
|---|---|---|---|---|---|---|---|
| ATyS p M | 125/160/250/400/630/800/1000/1250/1600/2000/2500/3200 A | – | – | – | Panel | Side-by-side or back-to-back | Evolved genset management |
| ATyS d p | – | – | – | – | Panel | Side-by-side or back-to-back | Evolved genset management, dual power supply |
Source of the values: Socomec ATyS p M user manual. ATyS p M’s full ampere ladder is confirmed from Socomec’s own user manual; ATyS d p is the dual-power-supply variant and its specific rating was not confirmed in the documents we hold. An en dash means the manufacturer does not publish that value in the source we hold; we do not fill it in with an estimate. Confirm every figure against the current manufacturer document before it is written into a contract.
The references we quote in this family are ATyS p M and ATyS d p. Send us the load, the phase and the transfer requirement, and we will confirm availability and lead time.
Which one should you choose?
Twelve standard sizes means the current rating is rarely the limiting factor
With steps at 125, 160, 250, 400, 630, 800, 1000, 1250, 1600, 2000, 2500 and 3200 A, ATyS p M almost always has a size close to the actual load, which simplifies specification compared to a platform with only two or three discrete ratings.
“Evolved” management is the reason to pick p M over the simpler g M
Where ATyS g M covers straightforward genset management, ATyS p M is positioned for evolved genset management with more advanced control; the choice between the two families at overlapping current ratings should be driven by how much control sophistication the site’s generator setup actually needs.
ATyS d p’s dual supply protects against the same edge case as ATyS d S, at higher current
Just as with the smaller ATyS d S, the dual power supply on ATyS d p is about the control circuit’s own resilience, not the main load path. Specify it when the site has a documented history of control-power issues, not as a routine upgrade on every large order.

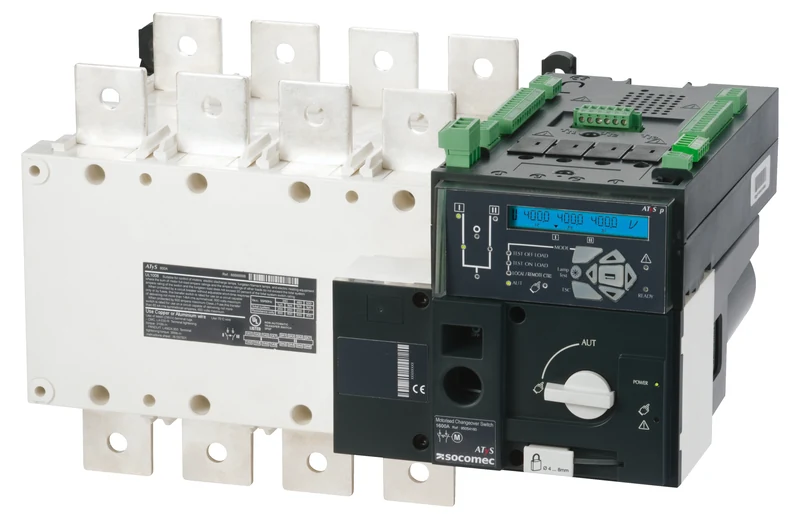

The LCD on ATyS p M reads live three-phase voltage, useful for commissioning checks
The control module’s display shows live voltage readings per phase, which lets commissioning staff confirm both sources are within range directly from the unit before relying on automatic transfer, rather than needing a separate meter for that initial check.
Where it fits, and where it does not
Fits a facility genset or power management role from 125 to 3200 A that needs more advanced control than the simpler ATyS g M offers. Does not fit a straightforward genset management need where g M is simpler and cheaper, and does not fit a load below 125 A; see the smaller ATyS M/S families.
What we need in order to quote it
- Ampere size from the twelve standard steps (125 to 3200 A)
- Whether the genset control sophistication genuinely needs p M over g M
- Whether the control circuit needs dual power supply (ATyS d p)
- Mounting arrangement and panel dimensions
